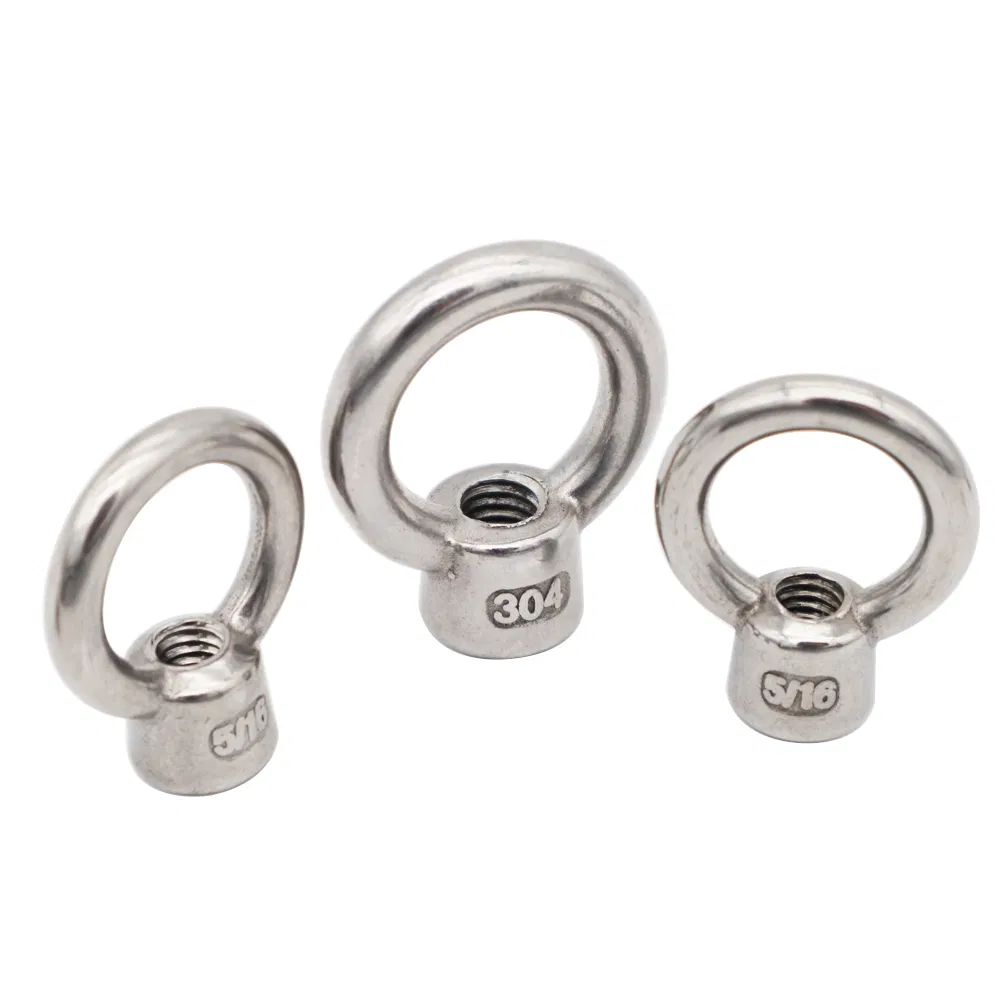

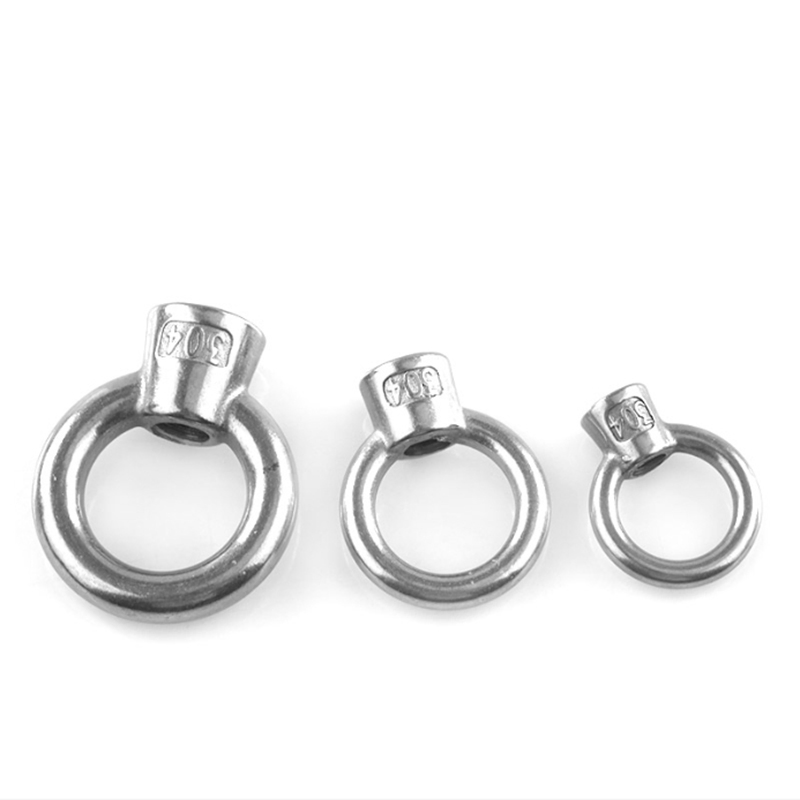

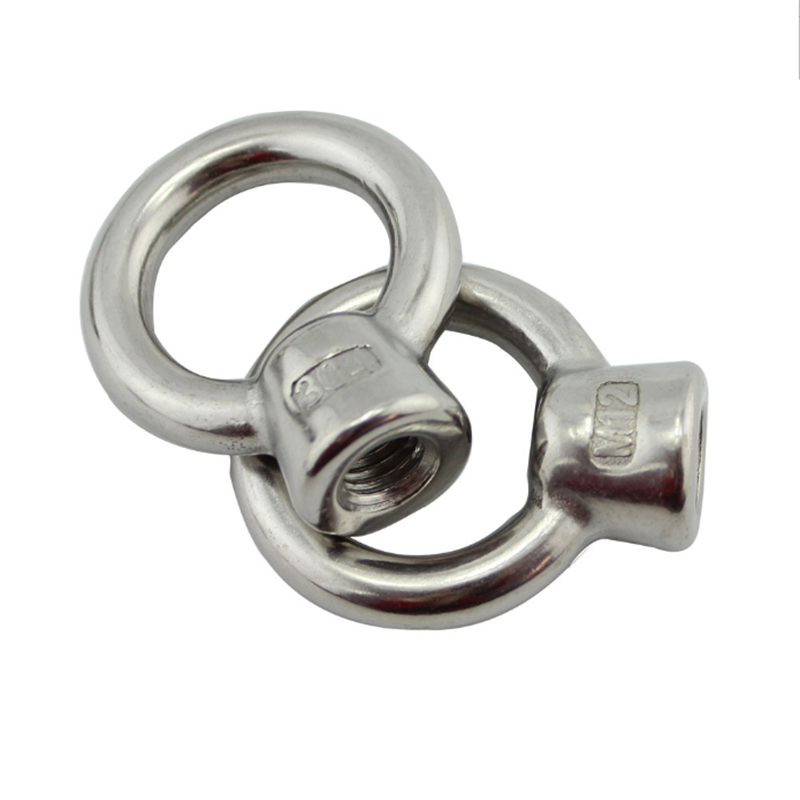

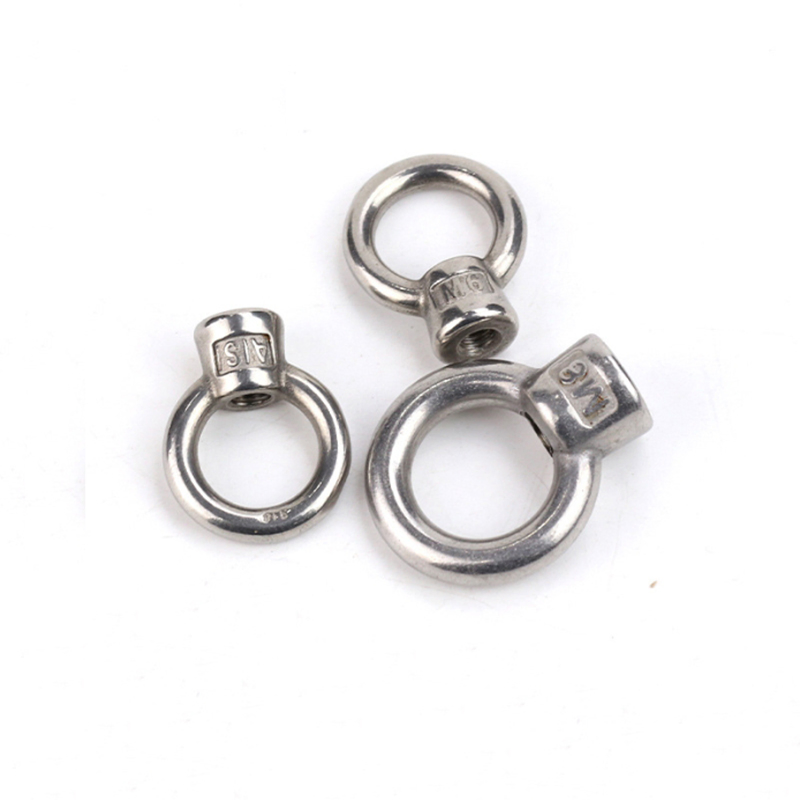

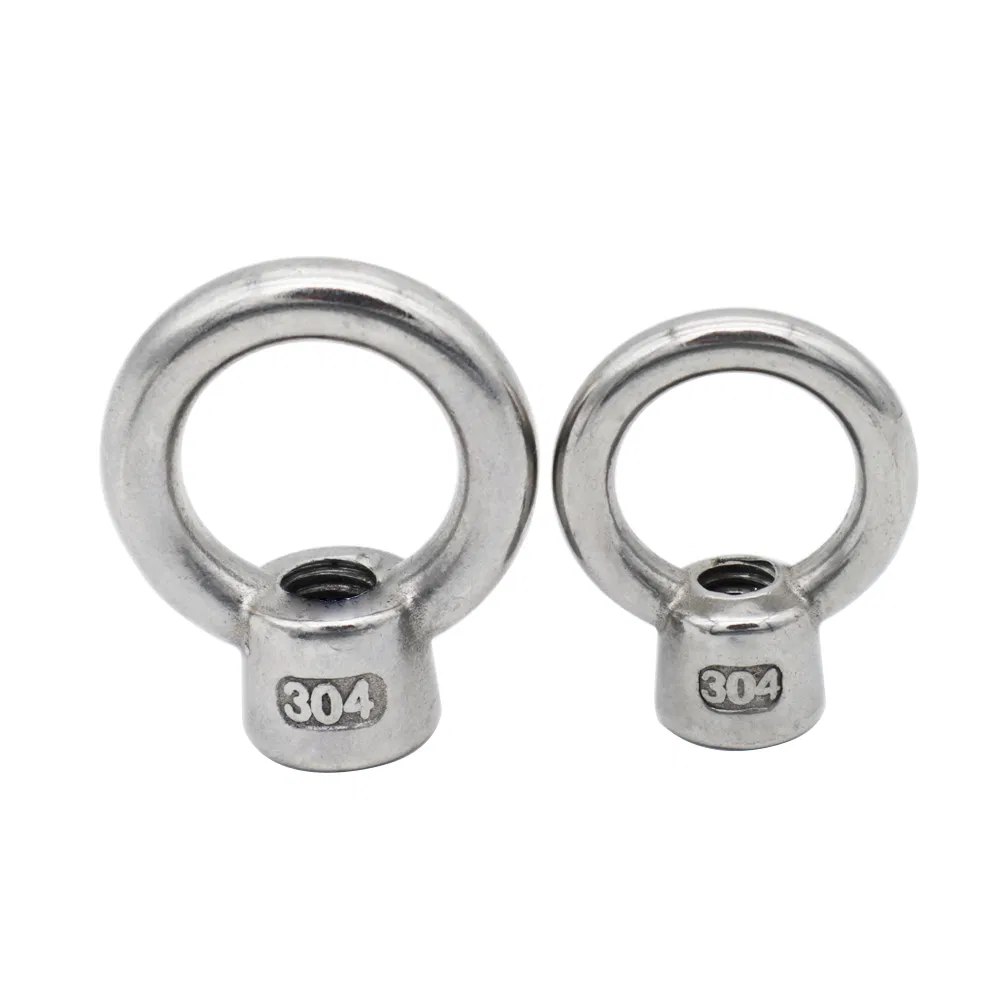

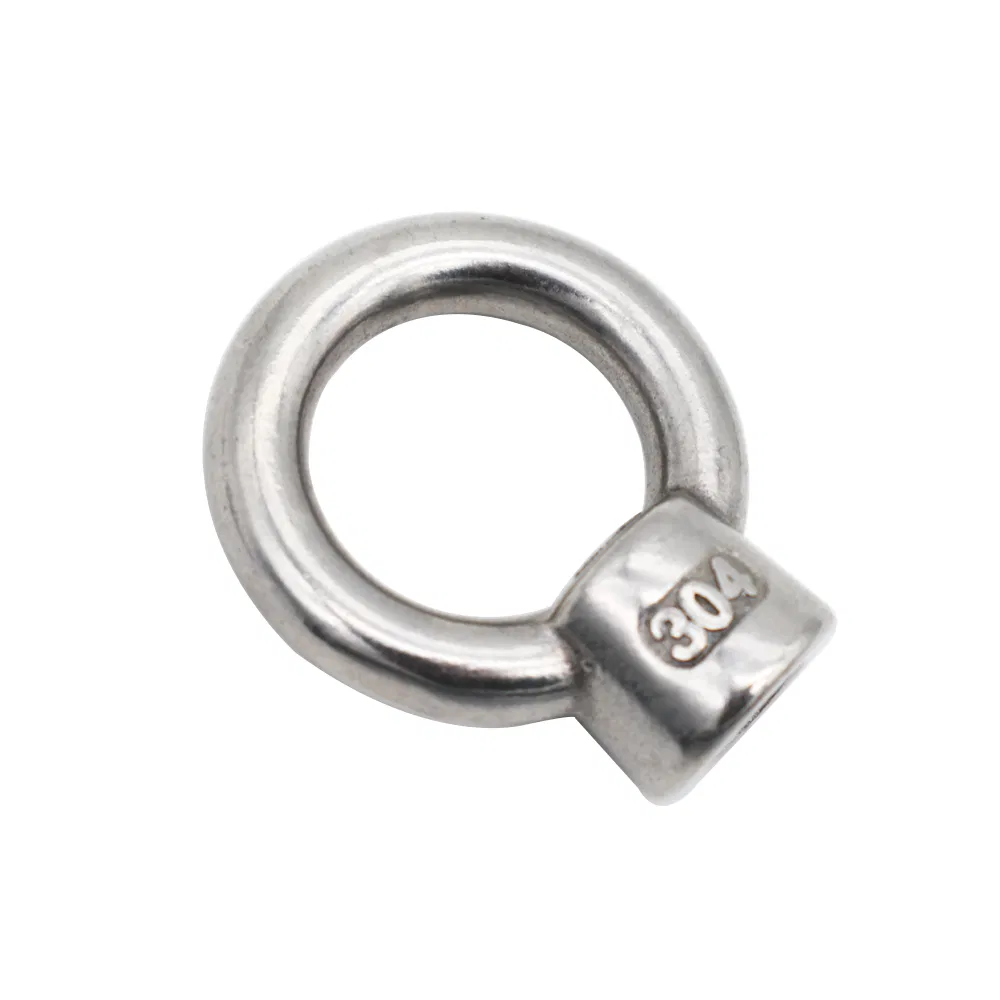

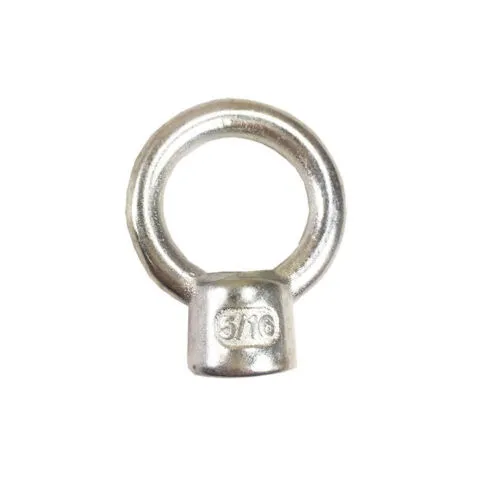

JIS1169 Lifting Eye Nut Stainless Steel High Polished

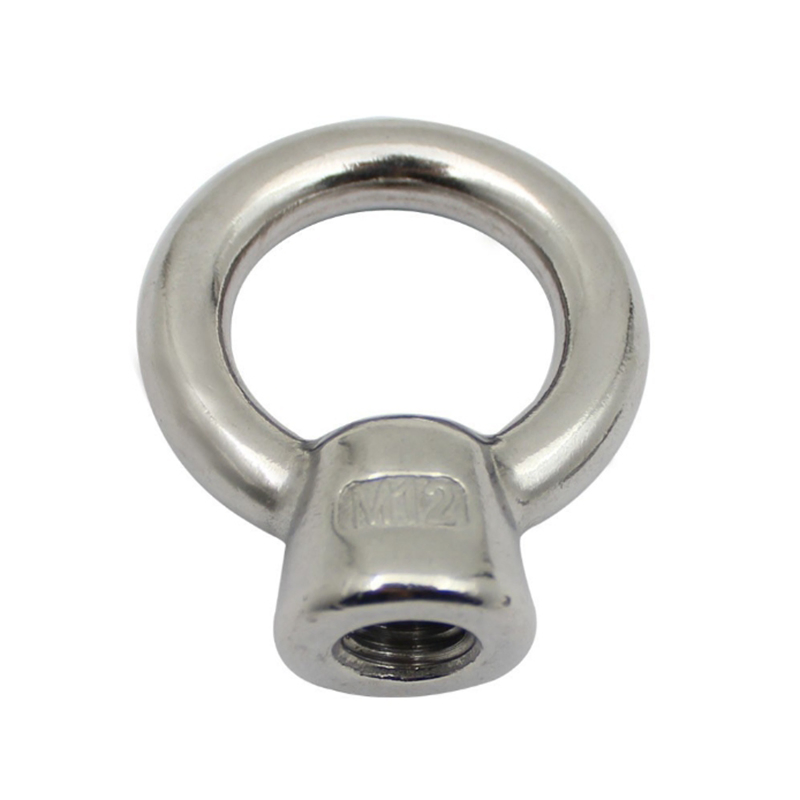

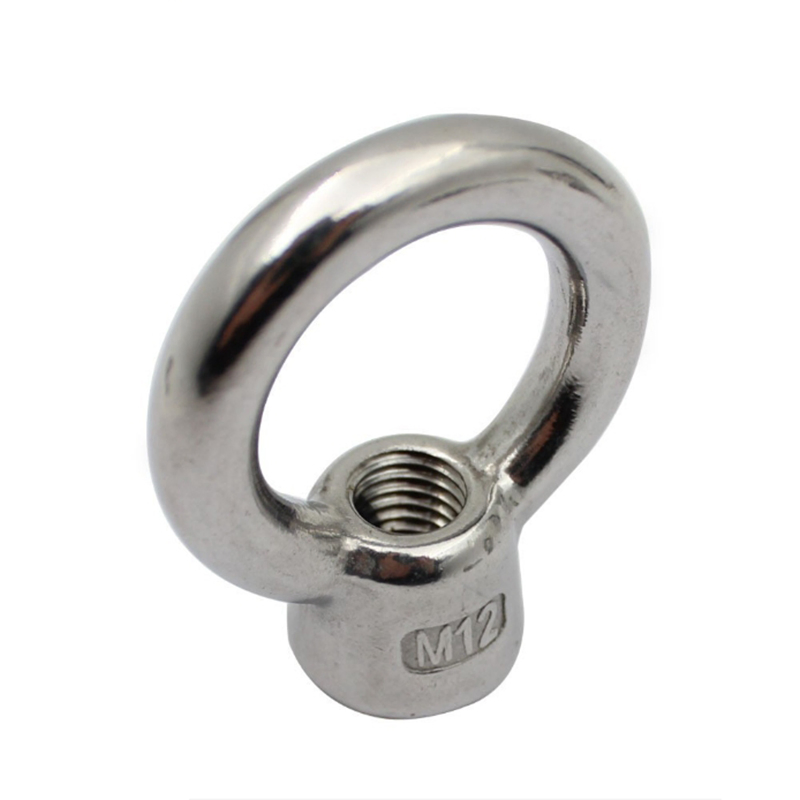

The standard used by our Square Shape Lifting Eye Bolt is the Metric Units standard. Its specification is M12. The screw that needs to be matched also needs to be in metric units. M12 is approximately equal to 1/2 inch, but it may not be compatible with a standard 1/2 inch thread bolt. The threads are always the coarse thread.
Material: Made of high-strength 316 stainless steel, durable, corrosion-resistant, and rust-proof. It has excellent bearing capacity. Working Load Limit (WLL): 250 Lbs. Precision threads and high-polished surface.

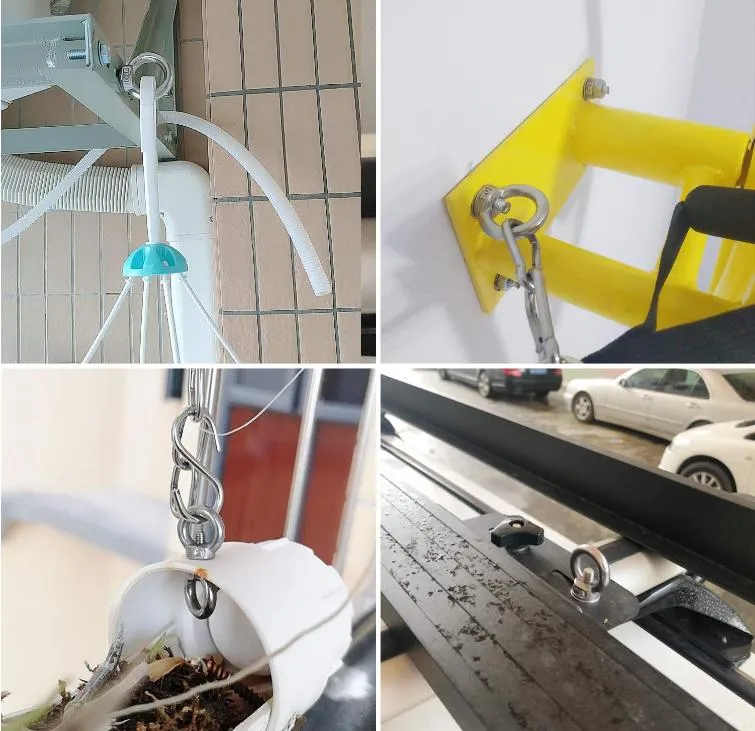

Easy to Install: Easy to use, ideal for lifting equipment. Widely used in various engineering lifting machinery, metallurgical and mining equipment, rail loading and unloading ports, forestry machinery, electrical equipment, etc.

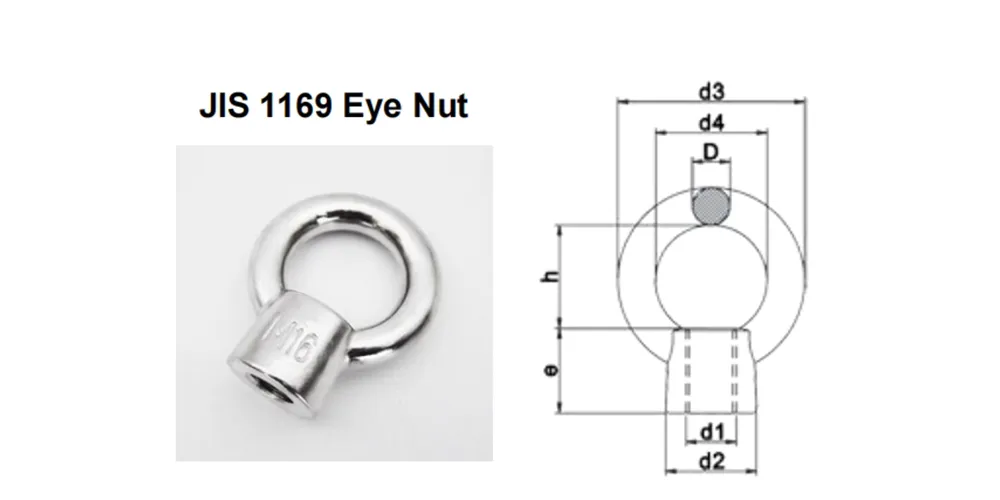

| d1 (mm) | d2 (mm) | d3 (mm) | d4 (mm) | h+e+d (mm) | D (mm) | WLL (kg) |
|---|---|---|---|---|---|---|
| M6 | 12 | 26.5 | 16.5 | 31 | 5 | 50 |
| M8 | 15 | 31.4 | 20 | 39 | 5.7 | 80 |
| M10 | 19 | 39 | 25 | 47.5 | 7 | 150 |
| M12 | 22.5 | 48 | 30 | 57.5 | 9 | 220 |
| M16 | 28 | 58 | 36 | 69 | 11 | 450 |
| M20 | 32 | 70 | 40 | 79 | 15 | 630 |
| M24 | 41 | 86 | 50 | 102 | 28 | 950 |
